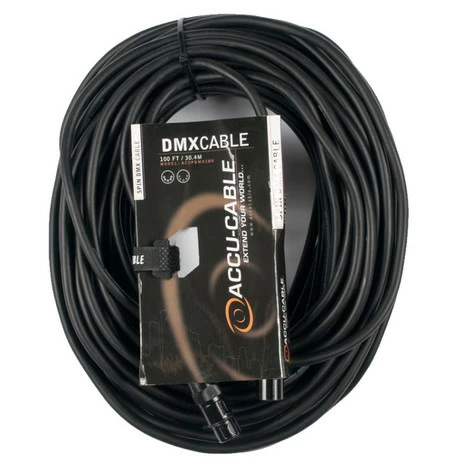

Accu-Cable AC5PDMX100 100′ 5-Pin DMX Cable

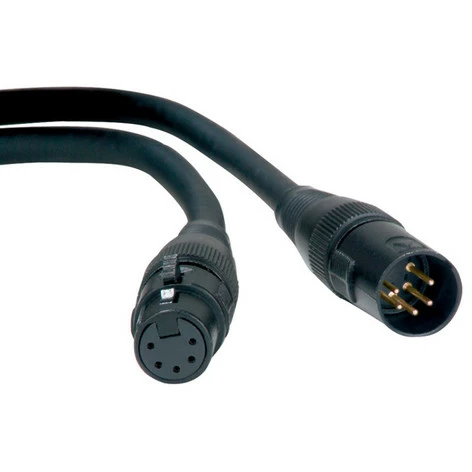

Accu-Cable’s AC5PDMX100 is a 100 ft 5-pin DMX cable with XLR connectors. 22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

AC5PDMX100 Specifications:

• Conductor:
  • Number of Pairs: 2
  • Total Number of Conductors: 4
  • AWG: 22
  • Stranding: 0.15 x 19
  • Conductor Diameter: 0.0354″
  • Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PEPolyethylene
• Lay Length:
  • Lay Length: 1.1″
  • Direction: Left Hand Lay
  • Twists: 10.9 per foot
• Inner Jacket:
  • Inner Jacket Material: PE- Polyethylene
  • Inner Jacket Diameter: 0.055″
  • Pair Color Code: Green/Black/Red/White
• Outer Shield:
  • Outer Shield Trade Name: Duofoil®
  • Outer Shield Type: Tape/Braid
• Outer Shield Material:
  • Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
  • Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material:TC-Tinned Copper, Coverage %: 85
• Outer Jacket:
  • Outer Jacket Material: PVC-Polyvinyl Chloride
• Overall Nominal Diameter: Overall Nominal Diameter: 0.295″
• Mechanical Characteristics:
  • Operating Temperature Range: (-30 degrees C To + 75 degrees C)
  • Bulk Cable Weight: 50 lbs/1000 ft
  • Minimum Bend Radius (Install): 3.5″
  • Maximum Recommended Pull Tension: 22 lbs.
• Electrical Characteristics:
  • Nominal Characteristic Impedence: 110 Ohms
  • Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/ft
  • Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
  • Nominal Velocity of Propagation: 76%
  • Nominal Delay: 1.6 Nanoseconds per foot
  • Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
  • Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft
  • Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100 ft.
  • Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
