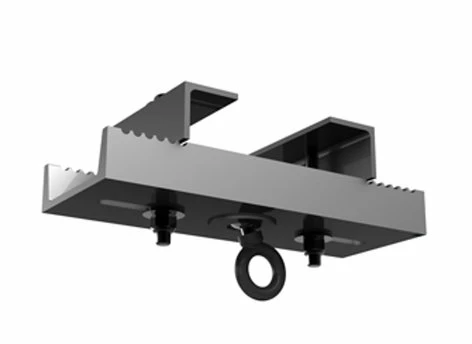

Adaptive Technologies Group BC12-18-GE 22″ Gimbaled Style Beam Clamp For 12-17″ Beams

Standard, pre-engineered channel style beam clamps anchor to a building’s beam structure to provide a safe and predictable method of rigging grids, clusters, arrays and other objects.

The Gimbaled Style beam clamp is unique in that it offers a gimballed swivel eye that accommodates up to 20° of off-axis side loading in any direction without losing any of its working load.

The gimbal feature is especially predictable when bridling suspended objects from wire rope, rigging chain, span sets, etc.

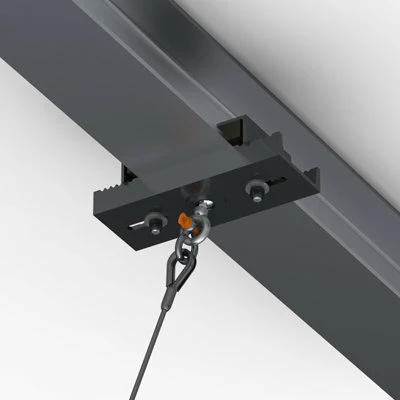

The body of the clamp mounts flush underneath the building’s I-beams and adjusts to accommodate beam flange widths between 12” and 18”.

ATM Flyware Beam Clamp Includes:

• 1 pc 22” Channel
• 2 Lock Angle Brackets
• 1 pc Eyebolt, 5/8”
• 1 pc Swivel Ball
• 5 pcs Swivel Ball
• 2 pcs Nyloc & Nut, 5/8”-11”
• 1 pc Hex Nut, 5/8”-11”
• 2 pcs Hex Bolt, 5/8”-11”- 5.5” Long
• 2 pcs 1/4” spacer
• 2 pcs 1/2” spacer
• 2 pcs 1.00” spacer

ATM Flyware Beam Clamp Features:

• For beam flanges 12″ to 18″
• Accomadates thicker beam flanges
• Flange spacers included
• Gimballed hang point swivels 360°
• Hang point retains same working load limit from 0°-20°
• Wide body provides extra clamp stability
• Non-loosening fasteners

ATM Flyware Beam Clamp Specifications:

• Materials: Alloy Steel Components
• Width: 12” to 18” (305 to 457mm)
• Color: Black
• Design: 5:1
• Vertical working load limit: 2000 lbs (908 Kg.)
• 20° working load: 2000 lbs (908 Kg.)
• 45° Working Load: 1200 lbs (908 Kg.)
• 90° Working Load: Do Not Exceed 65°
