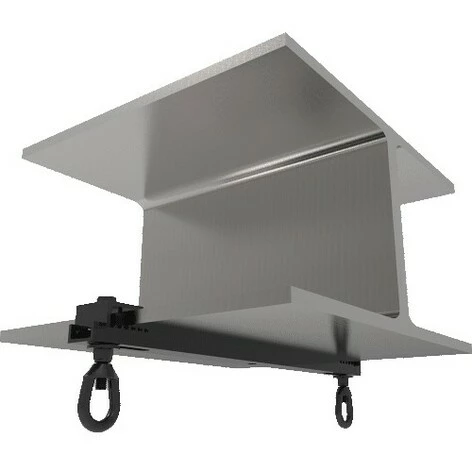

Adaptive Technologies Group BC20-26-2 Beam Clamp, 20-26″, 1 Ton, Two Eyes

0 to 26 inch Dual Hang Point

The Adaptive Technologies BC20-26-2 allows for two offset load rated rigging points from structural I-Beams with flange widths ranging between 20” and 26” (508-660.4 mm). The BC20-26-2 beam clamp model is designed for a quick, simple and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is needed to secure the clamp to the beam. *IMPORTANT – Beam flanges must be parallel to the floor to achieve the stated safe working loads.

NOTE: Recommended torque = 40-50 ft/lb

ATM BC20-26-2 Includes:

• 2 pcs 5/8” eye nut
• 1 pc Channel Clamp

ATM BC20-26-2 Features:

• For Beam Flanges 20″-26″
• Two load-rated suspension points
• Clamps quickly / permanently to I-Beams

ATM BC20-26-2 Specifications:

• Material: All Steel Components
• Width:(BC20-26-2) 20” to 26”
• WLL:600 lb / 272 Kg WLL (VERTICAL)
• Finish: Powder Coat
• Color: Black
• Design Factor: 5:1
• 45 DEG.: 354 lb
