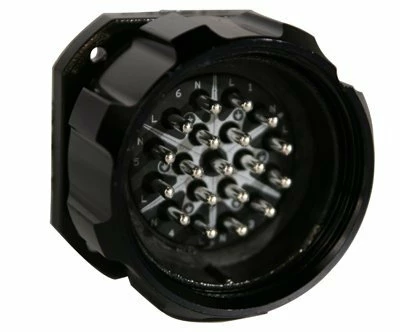

Lex LSC19-PMC LSC19 Male Panel Mount Connector With Crimp Termination

This connector is used to connect power to six circuits of theatrical or motion picture luminaries. It is also used for assembly or repair of six circuit lighting, control and power distribution equipment.

Applications:

• Motion Picture & Television Production
• Outdoor Events
• Entertainment Theatre
• Concert Touring
• Live Events
• Convention Centers
• Sporting Events
• OEM

Lex Products LSC19-PMC Features:

• Proprietary anti-rotation design features 12 interlocking keys to help prevent spinning of the interior within the male and female housings
• Prevents mis-alignment of male and female circuit conductors and unmateable or mismatched connections
• Helps prevent broken conductors and loose or damaged ground rings
• UL Recognized at 23 Amps, 600 VAC
• Each circuit can carry up to a maximum of 23 Amps continuous load
• “Tempered Spring” female contacts maintain constant pin pressure to help ensure low resistance connections
• Machined aluminum housing with hard black anodized finish provides enhanced durability
• Silver plated brass contacts for high conductivity
• Interiors are clearly and permanently marked on front and back for easy wiring andcircuit identification

Lex Products LSC19-PMC Specifications:

• Rating: 23 Amp, 600 VAC
• Operating Temperature: -55° to +60° C
• Ingress Protection: IP67 water tight when mated
• Housing Material: Machined aluminum, hard black anodized finish
• Insert: Silicone
• Cable Diameter Range: 0.55″ – 1.00″
• Termination Type: Crimp
• Conductor Size: #12 – #16 AWG
• Contacts: Silver plated brass
