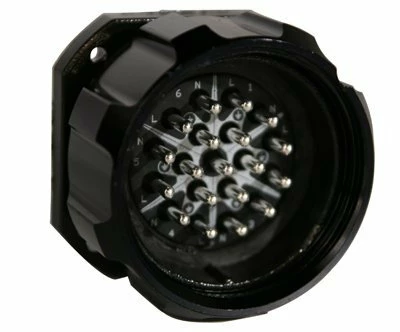

Lex LSC19-PMS LSC19 Male Panel Mount Connector With Solder Termination

This connector is used to connect power to six circuits of theatrical or motion picture luminaries. It is also used for assembly or repair of six circuit lighting, control and power distribution equipment.

Applications:

• Motion Picture & Television Production
• Outdoor Events
• Entertainment Theatre
• Concert Touring
• Live Events
• Convention Centers
• Sporting Events
• OEM

Lex Products LSC19-PMS Features:

• Proprietary anti-rotation design features 12interlocking keys to help prevent spinning of the interior within the male andfemale housings
• Prevents mis-alignment of male and female circuitconductors and unmateable or mismatched connections
• Helps prevent broken conductors and loose or damagedground rings
• UL Recognized at 23 Amps, 600 VAC
• Each circuit can carry up to a maximum of 23 Ampscontinuous load
• “Tempered Spring” female contacts maintain constantpin pressure to help ensure low resistance connections
• Machined aluminum housing with hard black anodizedfinish provides enhanced durability
• Silver plated brass contacts for high conductivity
• Interiors are clearly and permanently marked on front and back for easywiring and circuit identification

Lex Products LSC19-PMS Specifications:

• Rating: 23 Amp, 600 VAC
• Operating Temperature: -55° to +60° C
• Ingress Protection: IP67 watertight when mated
• Housing Material: Machined aluminum, hard blackanodized finish
• Insert: Silicone
• Termination Type: Solder
• Conductor Size: #12 – #16 AWG
• Contacts: Silver plated brass
