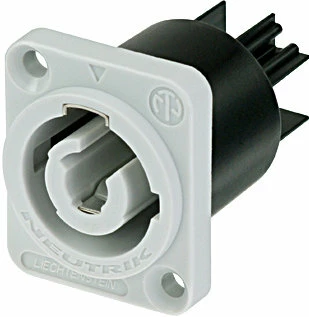

Neutrik NAC3MPB-1 Powercon Panel-Mount Receptacle Output

Neutrik’s powercon is a locking 3-conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Features

• Air tight chassis connector, B-type for power-out, flat tab terminals
• Lockable 3-pole equipment (AC) connector with contacts for line, neutral and pre-mating safety ground.
• High current capacity, rated at 20A / 250V ac.
• Fast and easy locking system
• Extremely robust and reliable
• Excellent cable retention
• UL, C-UL recognized components
• VDE and SEV approved

NOTE

The powercon is a connector without breaking capacity, i.e. the powercon should not be connected or disconnected under load or live.
