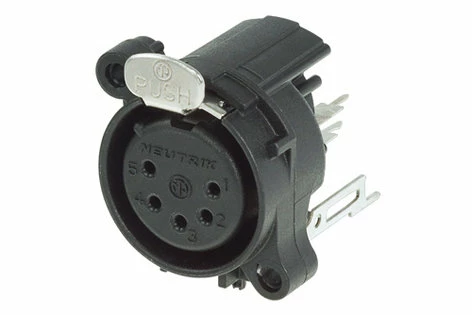

Neutrik’s NC5FAV is a round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centers). Features fork-type contacts with gold plating in the contact area and tin plating in the PCB termination area. UL recognized component.
Features:
- Smallest XLR receptacles, highest packing density
- Plastic housing, steel latch lock
- Tulip type female contact
- Polished contact areas and hard gold plating
- Housing flammability UL94 V-0
Specifications:
- Electrical :
- Capacitance between contacts: = 7 pF
- Contact resistance: = 6 mO (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GO (initial)
- Rated current per contact: 3 A
- Rated voltage: 50 V
- Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
- Mechanical :
- Insertion force: = 20 N
- Withdrawal force: = 20 N
- Lifetime: > 1000 mating cycles
- Wiring: vertical PCB mount
- Locking device: Latch lock
- Mounting direction: rear
- Chassis shape: A
- Mounting: A-Screw
- Material :
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Stahl Ck67
- Flange: Black Plastic
- Environmental :
- Flammability: UL 94 V-0
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
