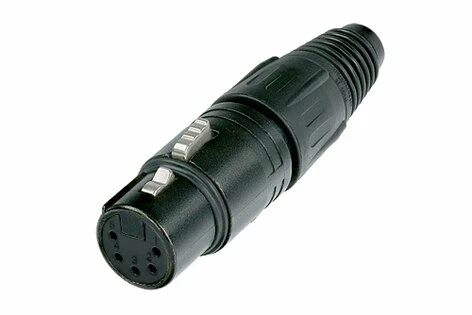

Neutrik NC5FX-BAG 5-pin XLRF Cable Connector, Black

5 pole cable connector, female. Black metal housing and silver contacts.

The worldwide accepted standard. Rugged diecast shell, rear insert, robust and compact design (shortest available XLR cable connector). Time saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief. UL recognized component.

Specifications:

• Electrical :
  • Number of contacts: 5
  • Contact resistance: = 3 m ohm
  • Insulation resistance, initial: > 2 G ohm; after damp heat test: > 1 G ohm
  • Dielectric strength: 1500 V dc
  • Rated current: 7.5 A
  • AWG: 1.0 mm²/18 AWG
  • Capacitance between contacts: = 7 pF
• Mechanical :
  • Lifetime: >1000 cycles
  • Insertion / withdrawal force: = 20 N
  • Cable O.D. range: 3.5 mm – 8.0 mm
• Material :
  • Shell: ZnAl4Cu1, gal Ni over Cu plating
  • Insert: PA 6.6 30% GR (glass reinforced)
  • Contacts: CuZn39Pb3
  • Contact surface: gal 2 µm Ag
  • Latch lock (female): St3K32
  • Strain-relief clamp: POM
  • Antikink bushing: PUR
• Environmental :
  • Temperature range: -30° C to + 80° C
  • Flammability: UL 94HB
  • Solderability: complies with IEC 68-2-20
