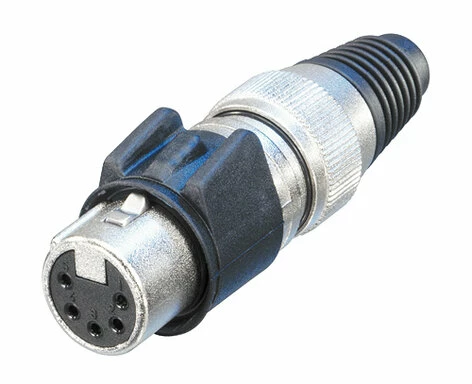

Neutrik NC5FX-HD Heavy Duty 5-pin XLRF Cable Connector

NC5FX-HD is a female heavy duty, metal boot with rubber jacket, water protected, IP65.

Features

• “Heavy duty” cable connector for outdoor use and all metal design
• NC*FX-HD mates with NC*MPR-HD chassis connector and NC*MX-HD cable connector
• Dust and water protected according IP 65 in mated condition
• Gold contacts
• Chuck type strain relief system for secure clamping of cables
• Boot with rubber gland gives high protection against bending stresses

Specifications

• Connection Type: XLR
• Gender: Female
• Electrical-
  • Capacitance between contacts: ≤ 7 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 7.5 A
  • Rated voltage: < 50 V
• Mechanical-
  • Cable O.D.: 3.5 – 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
• Material-
  • Boot: Polyurethan
  • Bushing: Stainless steel
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking Element: St3K32 (latch) / Ck 67 (spring)
  • Shell: Stainless steel
  • Shell plating: Nickel
  • Strain Relief: Polyacetal (POM)
• Environmental-
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP 65
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -30 °C to +80 °C
