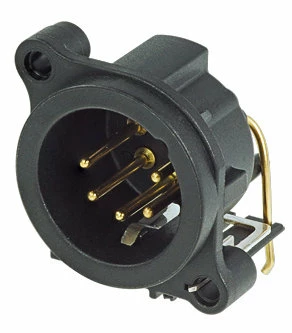

Neutrik NC5MAH A Series 5-pin XLRM Jack With Horizontal PCB Mount

The Neutrik NC5MAH is a 5-pin XLR-M horizontal PCB mount connector with a separate ground contact to mating connector shell and front panel. This connector features a round plastic body and has the smallest size and packing density (23mm between centers) available from Neutrik. UL recognized component.

Neutrik NC5MAH Features:

• Smallest XLR receptables, highest packing density
• Plastic housing, steel latch lock
• Polished contact areas and hard gold plating
• Housing flammability UL94HB

Neutrik NC5MAH Specifications:

• Capacitance Between Contacts: < /= 7 pF
• Contact Resistance: < /= 5 Megohms (inner)
• Dielectric Strength: 1.5 kVdc
• Insulation Resistance: > 10 Gigohms (initial)
• Rated Current per Contact: 3 A
• Rated Voltage: 50 V
• Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
• Insertion Force: < /= 20 N
• Withdrawal Force: < /= 20 N
• Lifetime: > 1000 mating cycles
• Wiring: Horizontal PCB mount
• Locking Device: Latch lock
• Mounting Direction: Rear
• Chassis Shape: A
• Mounting: A-Screw
• Contacts: Brass (CuZn35Pb2)
• Insert: Polyamide (PA 6.6 30 % GR)
• Flange: Black Plastic
• Flammability: UL 94 HB
• Standard Compliance: IEC 61076-2-103
• Protection Class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature Range: -30 °C to +80 °C
