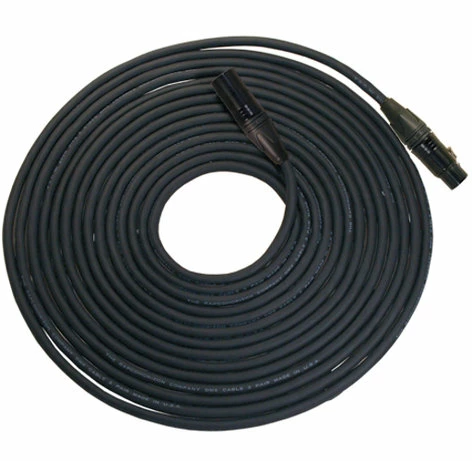

Rapco NBGDMX3-150 150′ 3-Pin Neutrik DMX Cable, Black

The RapcoHorizon Music NBGDMX3-150 DMX cable is commonly used to control stage lighting and effects. It can also be used to link not only controllers and dimmers, but also more advanced fixtures and special effects devices such as fog machines and moving lights. RapcoHorizon’s DMX cables are soldered in their facilities by their trained personnel.

RapcoHorizon NBGDMX3-150 Features:

• 1 pair cable, 24 gauge conductors
• Individually tested for performance and quality

RapcoHorizon NBGDMX3-150 Specifications:

• Cable: DMX-1PR
• Conductor Gauge: 24 gauge, 1 pair
• Shield: Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
• Jacket: Matte PVC
• O.D.: 0.210″
• Capacitance: 13.5 pF/ft. @ 1 kHz
• Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
• Characteristic Impedance: 110O nominal
• D.C. Resistance @ 20°C: 25.4O/1000 ft.
