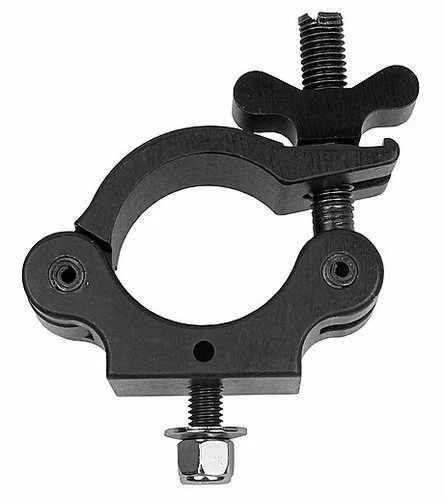

The Light Source MLB3/8 Mega-Coupler With 3/8″ Hex Head Bolt, Black

The Light Source’s MLB3/8 has a 3/8″ x 1″ Hex Head Bolt with The Light Source Wing Nut, and features solid nut tabs that won’t break off. It uses 3/8″ x 1″ long hex head grade 5 bolts to secure your load. The bolt head locks into the hex milled pocket so that you can tighten the nyloc nut while the clamp is installed. The Mega-Coupler fastens from (1-1/4″ Pipe) 1.66″ OD to 2 ” OD truss tube and has the industry compatible 14 mm thick base.

The Light Source MLB3/8 Specifications:

• Material: Black anodized aluminum
• Minimum Size: 1.25″ pipe, 1.66″ OD pipe
• Maximum Size: 1.5″ pipe, 1.90″ OD pipe, 2″ OD truss tube
• Safe Vertical Working Load: 1,100 lbs. (500kg)
• Hardware:
  • Standard hardware-
    • 1/2-13″ x 1-1/4″ Hex Head grade 5 zinc plated steel bolt with nylock nut
    • 1″ Belleville Washer
  • Weight: 1.2 lbs
