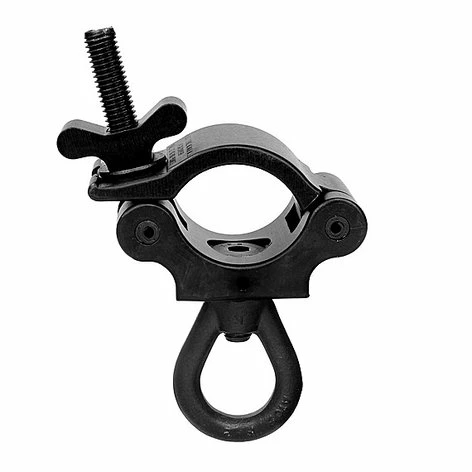

The Light Source MLBSE Mega-Coupler With Eye Nut, Black

The Light Source Mega-Coupler with Eye Nut has a Forged Steel Eye Nut for making rigging connections from a pipe or truss. The Forged Eye Nut is secured to the Mega-Coupler with a 1/2″ flathead socket screw with permanent loctite. The Eye Nut rigging connection is 2-3/4″ below the pipe and is able to swivel for proper orientation before loading. The Mega-Coupler will fasten from 1-1/4″ pipe (1.660″ OD) to 2.050″ OD truss tube. The Mega-Coupler has our wide wing nut for fastening the clamp to the pipe or tube.

The Light Source MLBSE Specifications:

• Safe Vertical Working Load: 1100 lbs, (500 kg)
• Minimum Size: 1.25″ pipe, 1.66″ OD pipe
• Maximum Size: 1.5″ pipe, 1.90″ OD pipe, 2″ OD trusstube
• Safe Vertical Working Load: 1100 Pounds
• Hardware: Forged steel eye nut, 1/2″ flathead socketscrew with permanent loctite.
• Dimensions (HxWxD): 2.5″ x 2″ x 4″
  • I.D. of 1.2″ Wide
  • I.D. of 1.5″ Tall
  • I.D. is pear shaped
• Weight: 1.3 lbs
