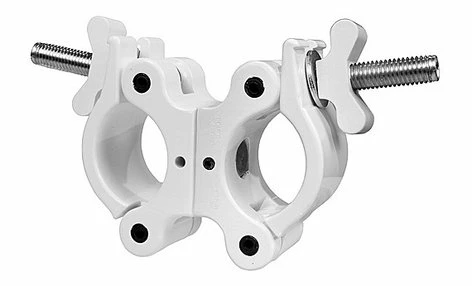

The Light Source MLSW Mega-Coupler Swivel, White

The Light Source’s Swivel Mega-Coupler fastens to pipes or tubes ranging from 1-1/4″ pipe (1.660″ OD) to 2.050″ OD truss tube. The Swivel Coupler has wide wing nuts for fastening the clamp to the pipe or tube, and can be locked into a 90º fixed coupler by adding an optional 7/32″ x 2″ spirol pin (sold separately).

The Light Source MLSW Swivel Mega-Coupler Specifications:

• Minimum Size: 1.25″ pipe, 1.66″ OD pipe
• Maximum Size: 1.5″ pipe, 1.90″ OD pipe, 2″ OD truss tube
• Safe Vertical Working Load: 1,100 lbs (500 kg)
• Weight: 2.2 lbs (1 kg)
