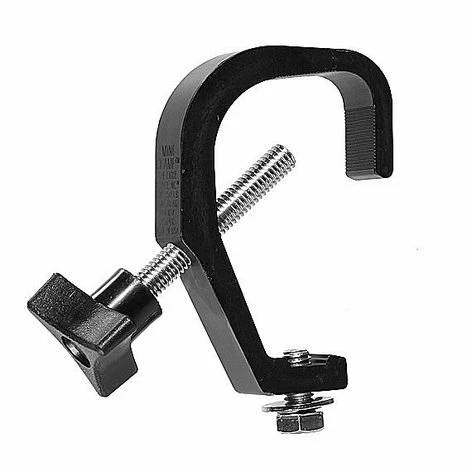

The Light Source MNB Mini-Clamp, Black

The Light Source’s MNB Mini-Clamp is perfect for PAR 38’s, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power.

The Mini-Clamp will grip from 3/4″ to 2″ tubing. Pipe bolt is 3/8″-16 TPI x 2″ Black Plastic Knob. Yoke bolt is a 3/8″-16 TPI x 3/4″ long. SWL is 150 lbs (70kg), yet the Mini-Clamp weighs less than 6 Oz.!

The Light Source MNB Specifications:

• Minimum Size: 3/8″ pipe, 0.675″ OD
• Maximum Size: 1.5″ pipe, 1.9″ OD, 2″ OD Truss Tube
• Safe Vertical Working Load: 150 lbs. (70kg)
• Hardware:
  • Pipe bolt is a steel 3/8″-16 TPI x 2″ stud with a Black Plastic Knob
  • Yoke bolt is a 3/8″-16 TPI x 3/4″ long
  • Belleville Washer
• Dimensions (HxWxD): 4″ x 2-3/4″ x 7/8″
• Weight: 6oz.
• Case Quantities: 24 – 48
