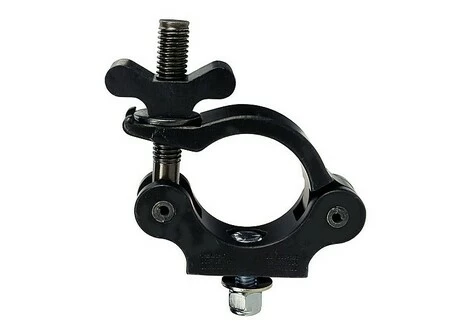

The Light Source MSCB Mega-Slim Coupler With 3/8?×1? Hex Cap Screw, Black

The Light Source’s Mega Slim Coupler is a lower-profile option for smaller light fixtures. It is half the size of their standard Mega-Coupler and weighs 30% less yet fits the same as the Mega-Coupler.

The Mega Slim will fasten from 1-1/4″ pipe (1.66 OD) to 2.050 OD Truss Tube. Has a wide wing nut for easy fastening of the coupler to the pipe or tube. Has hex pocket for 3/8″ bolt. Includes 3/8″ x 1″ zinc-plated bolt with nylock nut and spring washer. The bolt does fit flush into the Coupler.

The Mega Slim Coupler is also available with a 3/8″ Hex Flat Head or 1/2″ Hex Flat Head countersunk Bolt.

The Light Source MSCB Mega-Slim Coupler Specifications:

• Minimum Size: 1.25″ pipe, 1.66 OD pipe
• Maximum Siz e: 1.5″ pipe, 1.90 OD pipe, 2.050″ OD Truss Tube
• Safe Vertical Working Load: 600 lbs
• Hardware:
  • 3/8″ x 1″ Hex Cap Screw
  • Belleville Washer
  • Nylock Nut
• Weight: 0.65 lbs.
