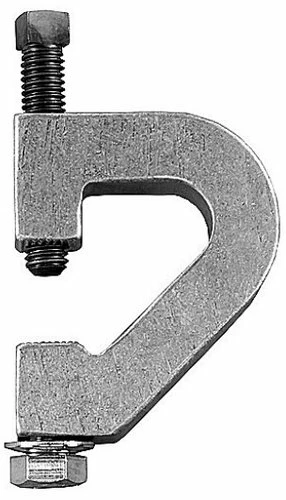

The Light Source PCB3/8 Purlin Clamp, 3/8″ Fasteners, Black

The Light Source’s Purlin Clamp [model PCB3/8] is perfect for installing to purlins, I-beams and bar joists up to 1″ thick. 3/8″ × 2.5″ square head set screw for locking onto I-beam. 1/2″ × 1″ grade 5 Hex Head Bolt supplied to connect load or use for 1/2″ – 13 tpi threaded rod. Micro-grooves for secure connection to beam. 1″ thick.

Light Source PCB3/8 Specifications:

• Safe Vertical Working Load: 300 lbs.
• Hardware:
  • 3/8″ × 2-1/2″ Square Head Set Screw
  • .5 × 1″ Hex Head Cap Screw
  • 1″ Belleville Washer
• Dimensions: 3-3/8″ × 3-7/8″
• Weight: 0.40 lbs.
