The Light Source VCM-LIGHTSOURCE Versi-Clamp

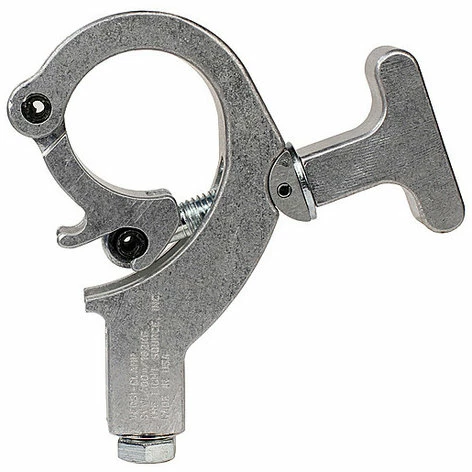

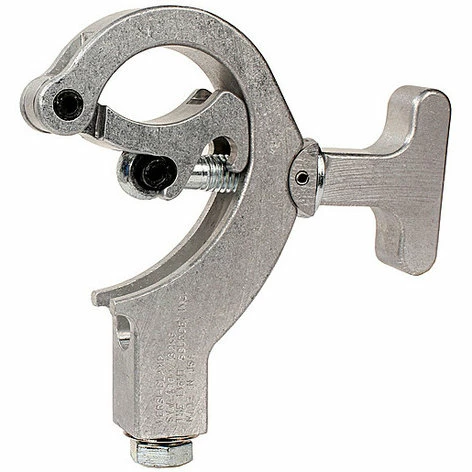

The Light Source’s Silver Versi-Clamp is a lighting hardware clamp designed to wrap around the entire range of standard truss, from 2″ OD down to 1″ OD, all without marring the truss. The unique 2-position latch on the link saves time when switching from 2″ truss to a small truss, just connect to the second latch for the smaller sizes. The quick release handle takes only 2 turns to be able to drop the locking mechanism, and release the clamp from the truss.

Light Source Versi-Clamp [model VCM] Specifications:

• Manufacturer’s Part Number: VCM
• Minimum Size: 1″ tubing, 3/4″ pipe, 1.050″ OD pipe
• Maximum Size: 2″ OD truss tube, 1.5″ pipe, 1.90″ OD pipe
• Safe Vertical Working Load: 400 lbs
• Hardware:
  • 0.5″ x 1″ Hex Head Cap Screw
  • 1″ Belleville Washer
• Weight: 1.2 lbs.
• Color/Finish: Silver
